Food and Water Safety Technologies Gone Viral

Providing the world population with sufficient quantities of safe food and drinking water is hampered by several factors, including erratic weather patterns from climate change and global overpopulation. Within the United States, the annual aggregated economic burden of foodborne disease is estimated to be between $51 billion and $71 billion, depending on the model used. The World Health Organization (WHO) estimates that the annual global burden of foodborne illness is approximately 600 million people, with 40% of the associated deaths coming from children under five years of age. These staggering statistics have led many scientists to look for new technologies to help combat pathogenic bacteria, while others are looking to revive older strategies.


Phages are ubiquitous and naturally exist on food surfaces, are regularly consumed by humans, and do not influence the organoleptic profile of the products they come in contact with.

Bacteriophages (phages) have been used as tools to address several of the emerging global issues that now plague humanity. Food safety is one of the areas where the unique characteristics of phages have shown promise as effective biocontrol agents of bacteria. Phages are the natural viral predators of bacteria and have evolved over billions of years to efficiently bind, infect, and kill their host bacteria with a high degree of specificity and speed. What’s more, phages are ubiquitous and naturally exist on food surfaces, are regularly consumed by humans, and do not influence the organoleptic profile of the products they come in contact with. Since the topic was last addressed in Food Technology in 2014, interest in general phage research as well as applications of new food-related phage technologies has grown significantly as emerging methodologies and technological advances in genetic engineering accumulated and became less expensive to employ.

This ever-expanding niche in the field of biotechnology boasts a number of new and exciting developments that have caught the eye of many food processors along the farm-to-fork chain. Examples of phage-based technologies currently on the market include

  • Agriphage (Certis USA), which is being used to control bacterial spot and speck on tomatoes and peppers
  • EcoShield (Intralytix) and PhageGuard E. (PhageGuard), which target E. coli O15:H7; PhageGuard S. (PhageGuard) and SalmoFresh (Intralytix), which target Salmonella spp.
  • ListShield and ShigaShield (both from Intralytix), which target Listeria monocytogenes and Shigella spp., respectively (Moye, Woolston, and Sulakvelidze 2018).

The continual global impact of food outbreaks means that new and innovative ways for combating these dangerous bacterial food and water pathogens are actively needed. Researchers can take advantage of natural systems (i.e., phage infections) that have been so evolutionarily successful in controlling their targeted bacteria’s population, they’ve gone viral. After all, the enemies of our bacterial enemies are promising food safety friends.

Understanding Phage Biology

For billions of years, the perpetual bilateral arms race that occurs between phages and their bacterial targets has led to each organism’s respective evolution being interdependent on the other: As bacteria are pressured to avoid phage infection, phages are then pressured to overcome host defenses. This coevolution has resulted in the incredible specificity and molecular synergy that phages have with their hosts, along with a unique recognition ability for their host bacteria. It is important to note that similar to all viruses, phages are not living organisms but instead are obligate biological parasites that rely exclusively on their bacterial host for their replicative process. Therefore, phage evolution can be attributed to replication mistakes of their host.

Bacteriophagesn Fig1

There are an estimated 1032 phage particles on Earth, with about 95% of these belonging to the Caudovirales order of tailed bacteriophages that follow either lytic or lysogenic replication cycles, described in Figure 1. Generally speaking, lytic replication begins with receptor-dependent recognition of a host bacterium’s surface, facilitated by receptor-binding proteins located at the end of a phage’s protruding tail fibers. Upon injection of the phage genome into the bacterial cytoplasm, a phage must successfully avoid host antiviral defenses while simultaneously hijacking the bacterium’s molecular machinery. During viral replication, phage-encoded endolysins enzymatically degrade the bacterial cell wall from within to release tens to thousands of newly assembled phage particles (virions) back into the surrounding environment. The released virions are then able to infect new hosts, thus perpetuating the phage replication cycle.

Bacteriophagesn Fig2

Lytic phages incubated in a petri dish with their host bacteria form clear plaques within a bacterial lawn. The concentration of phages can therefore be quantified as plaque-forming units, which is comparable to bacterial colony-forming units.

Because phages do not infect all strains within their host range equally, an equal titer of phages may display a different number of plaques on various strains when performing a plaque assay. Still, the method of titering phages by using a plaque assay has barely changed since its creation over a century ago.

Phage Technologies for the Food Industry

In the early 1900s, phages were administered to patients infected with bacterial pathogens as a means to control the infection. This practice is called “phage therapy”: where a cocktail of phages that target the same bacterial host(s), often via different surface receptors, are administered together in order to cover a wider number of bacterial strains within this cumulative host range. Although using phages was originally met with enthusiasm, the discovery of penicillin in 1928 combined with controversies within the scientific community over the efficacy of phage treatments (due to inconsistent results and poorly controlled experiments) resulted in phage research being effectively abandoned in the United States at the end of World War II.

In many Eastern European countries and the former Soviet Union, however, phage research has continued to thrive and is widely practiced. Phage cocktails have been successfully used in the past for bacterial-induced diseases like cholera and dysentery, and more recently in a highly publicized case of multidrug resistant Acinetobacter baumannii in San Diego.

In the United States, phage therapy has only been approved for “compassionate use” by the U.S. Food and Drug Administration (FDA) although many other phage-based technologies have been approved by U.S. regulatory agencies, including the FDA, the U.S. Department of Agriculture, and the Environmental Protection Agency. Some of the most popular phage products, such as ListShield, have been reliably used in the United States since the mid-2000s, with many products having also achieved GRAS (Generally Recognized as Safe) status for equally as long. Similar phage applications are prevalent in European countries, improving upon both food and water safety as well as highlighting the immense versatility of these predators of bacteria.

As an example, a prominent biotech company based in the Netherlands, Micreos, has been producing phage-based biocontrol technologies (where “phage biocontrol” is defined as using high concentrations of phages to specifically target and eradicate relevant foodborne or waterborne bacterial organisms) for food safety applications since 2010.

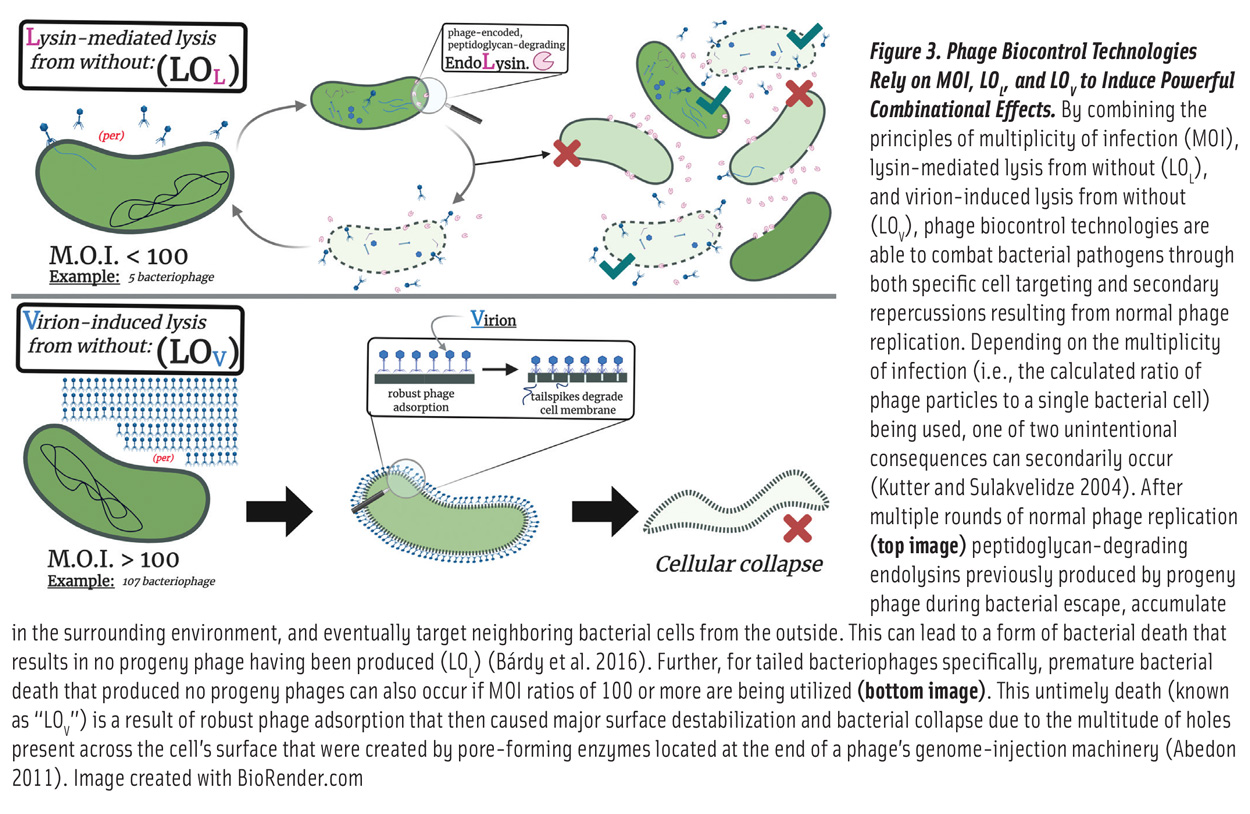

Bacteriophaesn Fig3

Despite the many available food safety strategies currently in practice, which act as “hurdles” (e.g., pH, water activity, refrigeration) that food pathogens must overcome to grow, outbreaks still occur and remain a substantial burden on global health care and economies. Phages offer an additional pragmatic and natural hurdle for combatting our bacterial enemies. Phage technologies take advantage of many valuable traits that the viruses naturally possess. High concentrations of phages used against their bacterial hosts have both immediate and secondary effects. While phage binding and infection may have a more limited target host range, the endolysins produced as a result of phage infections often target more well-conserved structural components of bacterial peptidoglycan layers, thus acting as an additional layer of biocontrol.

For phage-based bacterial detection technologies, an additional benefit is that phages can only infect and replicate in growing bacterial cells. Therefore, bacteria that have been killed using an upstream mitigation step, such as heat treatment, would not produce a false positive signal. Additionally, the average lytic replication cycle lasts 15–30 minutes, allowing rapid test results.

The development of phage-based technologies has also demanded that phage production be scalable, utilize preexisting industrial equipment, and be inexpensive to produce. The Sample6 DETECT test system, now marketed by IEH, is an example of a phage-based bacterial detection system that has been used by food processing companies since 2014. The system identifies points of Listeria and Salmonella contamination both on-site and in-shift.

Over the past few years, more examples of effective phage-based tools intended for both pre- and post-harvest applications have been introduced. As consumer demand for “cleaner” and more “natural” food products intensifies, the use of phages on foods and in food processing environments has gained more attention. Future avenues for phage application include using phages to replace the addition of antibiotics in animal feeds—a once globally accepted but now banned technique used by meat industries to promote rapid animal growth and reduce maturation time before slaughter. The need for an alternative to antibiotic treatments is of particular interest to the global shrimp market, which has previously relied on the heavy use of antibiotics to stave off bacterial infections responsible for premature death within shrimp colonies.

While most available phage technologies utilize whole phage particles, applications using isolated phage components have been investigated recently. Such is the case for utilizing phage-encoded endolysins, which are normally produced by phages at the end of their replication cycles to destroy bacterial peptidoglycan layers in a site-specific manner, and are being investigated by researchers as novel surface disinfectants and agents that help to prevent and break up biofilms.

The variability and complexity of different food matrices means that no single technology, including phage technology, has been able to ensure the safety of all food products.

For example, heat treatment is a common technique used to reduce the number of food pathogens within some foods, yet this method may not be suitable for fresh foods such as spinach. To overcome this, food industries will instead rely on chemical sanitizers like chlorine and per acetic acid, a practice that can have its own application issues. When used in combination with varying hurdle technologies, phage biocontrol represents an innovative and multifaceted approach to targeting and destroying specific spoilage and food safety–related bacteria that are common for many food processing facilities. It’s important to note that these pairings cannot be used as a one-size-fits-all solution, and are dependent on the properties of the food matrix in question, bacteriophage(s) being used, and the bacterial pathogen being targeted.

Final Thoughts

The future of bacteriophage technology is bright and full of potential. There is additional work to be done to assuage the concerns of phage skeptics within the food industry, but the growing interest in this field will help to support and facilitate these critical studies.

With such a massive body of primary research having already shown the efficacy and safety of bacteriophages on foods and food contact surfaces, these technologies could begin to be more globally applied. As humanity is tasked to come together and create sustainable solutions for troubling problems such as reliable sources of clean food and water, phages and their respective technologies will likely continue to stand at the forefront of applied biotechnology.

Website Link (Article by Emma L. Farquharson & Sam R. Nugen)
